Transmiters

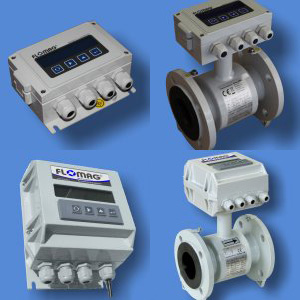

Transmitter FLOMAG3000
as remote version

Magnetic flowmeter FLOMAG 3000 is a volume flow rate meter for conductive fluids in pipelines. It allows measurement of flow rates in both directions, with high accuracy and in wide range of flow rates (0,1 – 12 m/s). The microprocessor controlled transmitter offers a wide variety of binary, analogue and digital inputs and outputs suitable for all applications. Absence of moving parts and digital calibration ensures long-term accuracy and stability.

The main benefit of FLOMAG 3000 type series instruments is their versatility. As a standard, the flowmeter transmitter includes a power supply and basic circuits enabling its measuring functions. All other inputs, outputs and display units can be added as plug-in modules. Thus, the customer only pays for the function actually required. This design also permits various inputs and outputs according to the specific needs of the customer

Versions equipped with display and keyboard provides a wide variety of displayable operating data on a readable two-line display with large characters. Also all adjustable parameters can be comfortably changed during operation, using a four-key keyboard.

For communication with transmitter you can use protocols M-BUS, MODBUS-RTU, MODBUS-ASCII or HART. For remote reading you can choose GSM modem.

Transmitter FLOMAG3000
as compact version with flanged sensor

Transmitter FLOMAG-IC
as remote version

Magnetic flowmeter FLOMAG-ICM is a volume flow rate meter for conductive fluids in pipelines. It allows measurement of flow rates in both directions, with high accuracy and in wide range of flow rates (0,1 – 12 m/s). The microprocessor controlled transmitter offers a wide variety of binary, analogue and digital inputs and outputs suitable for all applications. Absence of moving parts and digital calibration ensures long-term accuracy and stability.

Transmitter has two passive, galvanically isolated, programmable binary outputs. They can be used as pulse, frequencz, or for indication of limit values. RS232 is used for service purposes. For industrial communication it is possible to equip the transmitter with galvanically isolated interface RS485. As option, the transmitter can be equipped also with active, galvanically isolated, programmable current output 0/4-20 mA.

Versions equipped with display and keyboard provides a wide variety of displayable operating data on a readable two-line display with large characters. Also all adjustable parameters can be comfortably changed during operation, using a four-key keyboard.

Transmitter FLOMAG-ICM
as compact version with flanged sensor
