ULS01

Ultrasonic level switch

Brand

It was designed for level control of liquids, process/alarm signalisation or control of pumps, valves, etc.

Advantages

easy installation
no moving parts
independence from the type of the liquid (conductivity, viscosity, etc)
electrically isolated from the liquid
permanent hysteresis 2 mm

Description

phoca_thumb_l_ULS01_1

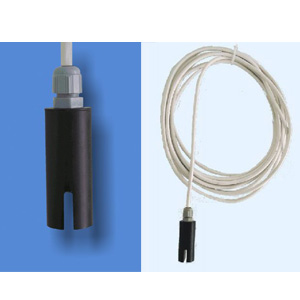

Ultrasonic Level Switch ULS01
Sensor Detail

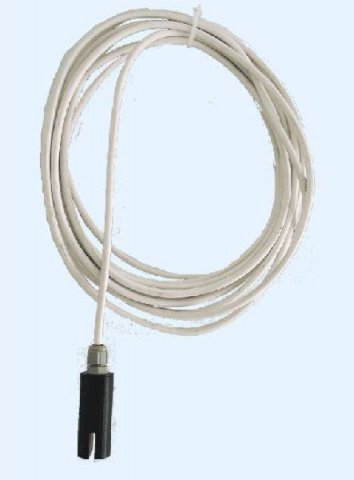

phoca_thumb_l_34l_1

Ultrasonic Level Switch ULS 01

Working principle

The switch is based on the difference of the ultrasonic signal passing through the air and the liquid, between two piezoelements.

When the chink between the both piezoelements is not covered by the liquid, the ultrasonic signal damps out in the air and there is no any output signal.

When the liquid level covers approximately 50% of the chink between the piezoelements, acoustic contact takes place and the output activates.

Installation

Sensor hangs on its cable in the required level depth. In case of considerable whirls, it is necessary to ensure stationary fixation.

Technical data

- power supply – 10 – 24 VDC
- consumption – 100 mW
- protection – IP68
- max temperature – 60 °C
- output (electronic switch) max – 0,1 A/36VDC
- standard cable – 5 m
