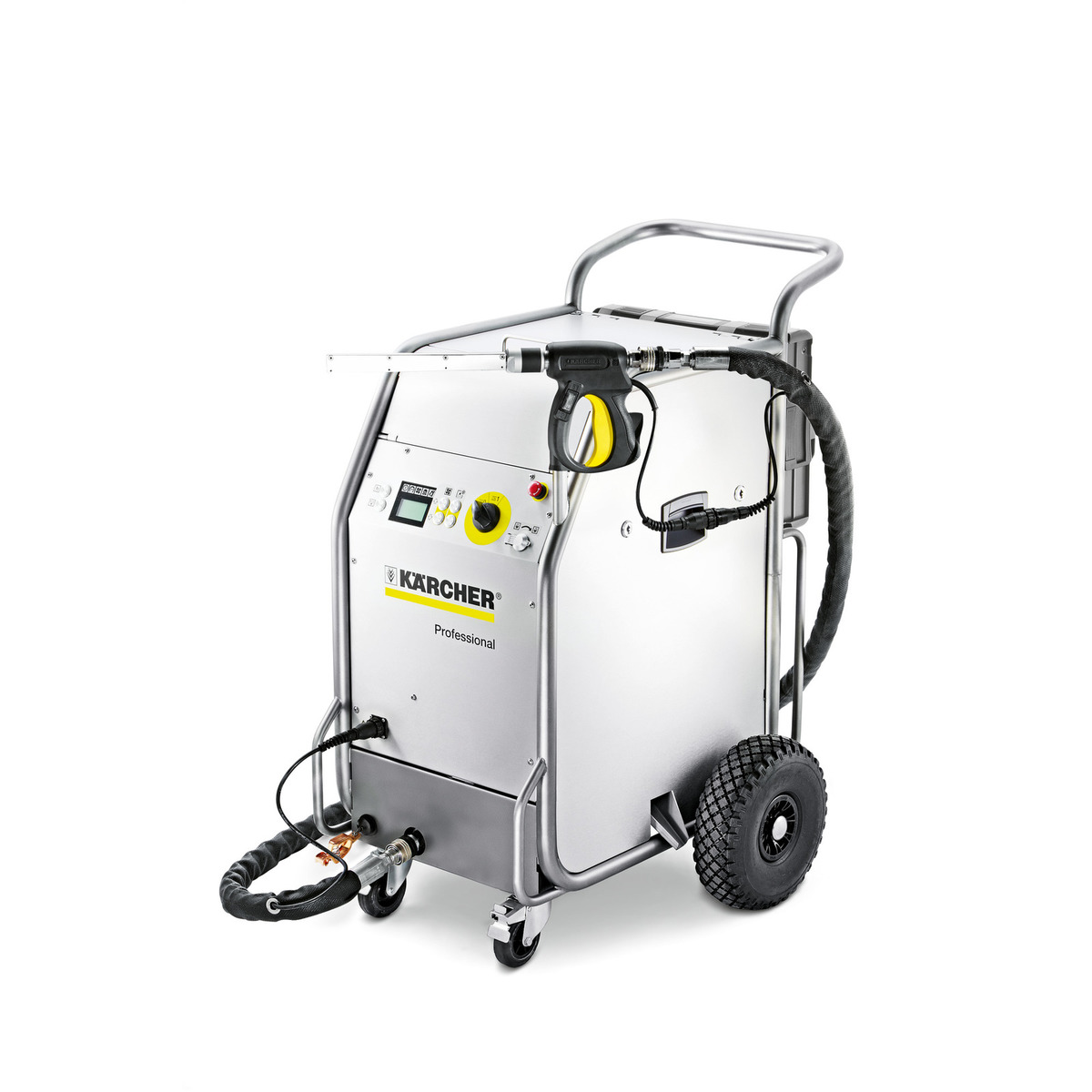

IB 15/120

Brand

The Ice Blaster IB 15/120 is powerful, robust and extremely reliable. The intelligent, detailed solutions such as case holder, ice emptying, retaining bracket and storage compartments also contribute to its positive overall impression, increase operating comfort and make dry ice cleaning more enjoyable. And from a technical point of view, the solution lies in the detail, which is why we have significantly improved the air streaming in the machine, hose, trigger gun and nozzle.

The result: outstanding cleaning performance. In spite of its size, the IB 15/120 is very mobile and can be carried easily by one person, for example over stairs.

In short: dry ice blasting at its best!

Description

GFRP dry ice container

Optimum insulation of the dry ice.
No condensation.
No icing up of the machine.

Efficient airflow in the device

The dry ice is transported from the device to the nozzle without any damage.
Ultimate cleaning performance at the nozzle.

Integrated ground strap coil

Easy earthing of the object being blasted.
Protection from arcing from the user to the object.
Improved jet convenience.

Integrated oil and water separator

No icing up of the device.

Refined trigger gun holder

The trigger gun is always perfectly stored.
Ideal position (e.g., for changing the nozzles).

Integrated storage compartment for nozzles and tools

Everything always to hand – directly on the device.

Technical data

Connected load (kW)	0,6
Compressed air connection	Claw coupling (DIN 3238)
Casing / frame	Stainless steel (1.4301)
Cable length (m)	7
Air pressure (bar/MPa)	2 - 16 / 0,2 - 1,6
Air quality	Dry & oil-free
Air flow (m³/min)	2 - 12
Sound pressure level (dB(A))	125
Dry ice capacity (kg)	40
Dry ice pellets (diameter) (mm)	3
Dry ice consumption (kg/h)	30 - 120
Number of current phases (Ph)	1
Frequency (Hz)	50 - 60
Voltage (V)	220 - 240
Weight without accessories (kg)	91
Weight (with accessories) (kg)	101,5
Dimensions (L × W × H) (mm)	1000 x 800 x 1300

Scope of supply

Nozzle case with foam insert
Grease for nozzle threads
Flat jet nozzle
Flat jet nozzle insert: 8 mm
Open-end wrench (for changing nozzles): 2 Piece(s)
Round spray nozzle, XL, long
Spray hose with electrical control cable and quick coupling
Jet gun (ergonomic and safe)

Equipment

"Air only" or "Air and ice" switch on the trigger gun
Electronic control unit
Includes ground strap coil
Oil and water separator
