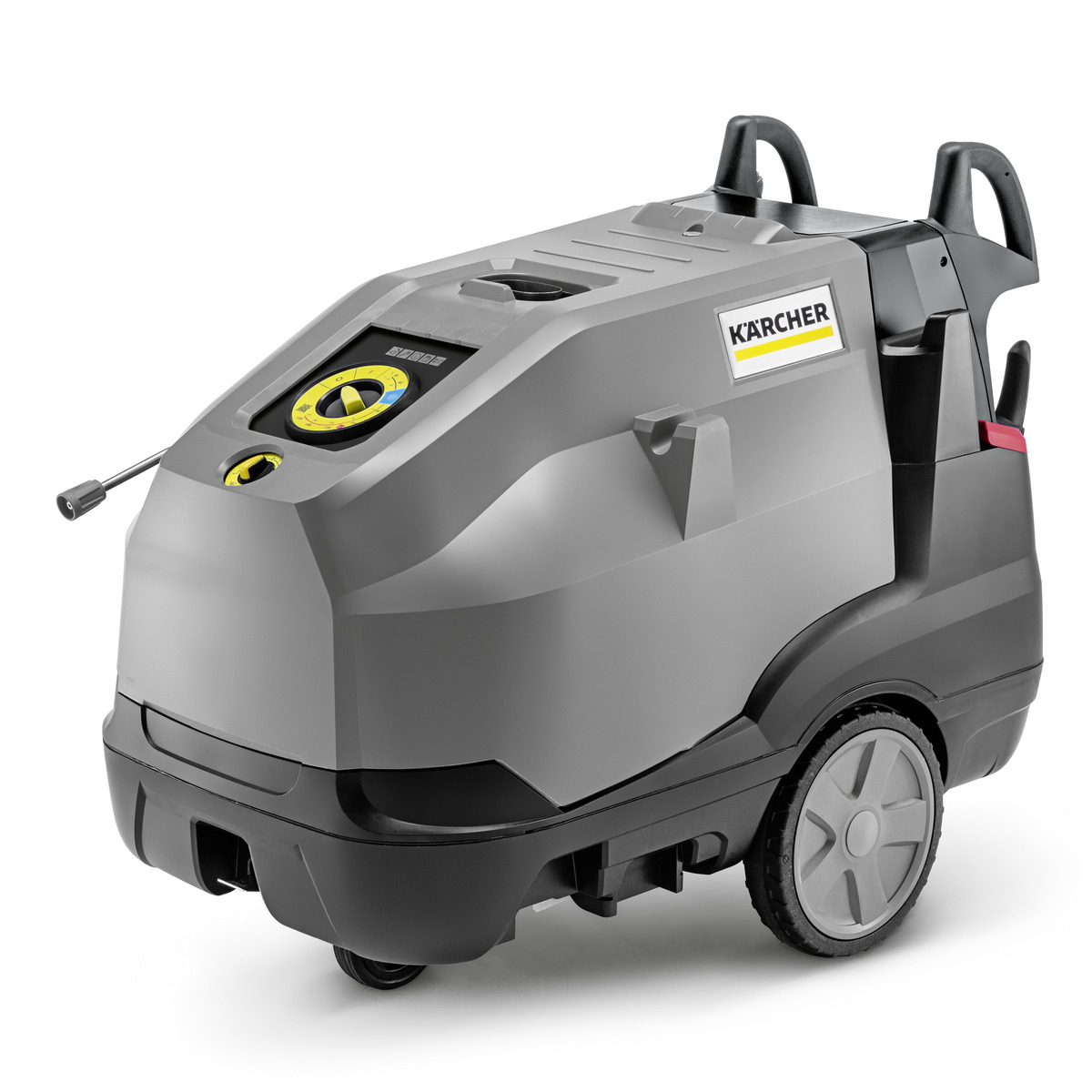

HDS 10/21-4 M

Brand

The HDS 10/21-4 M is one of the most powerful hot water high-pressure cleaners in the middle class and also impresses with its sophisticated ergonomics and high level of user-friendliness. Its low-speed, 4-pole and water-cooled electric motor, the robust 3-piston axial pump with ceramic piston and the economical eco!efficiency mode simultaneously ensure maximum performance and reliable, economical operation. The energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology as well as the EASY!Lock quick-release fasteners are also included as standard for fatigue-free and time-saving work. Many other equipment and performance details are also impressive, such as the optimised burner engineering, the 2 detergent tanks, the convenient mobility concept, the extensive safety technology, the simple operation with just one switch or the clever accessory storage options.

Description

Operational safety

Easy-to-access water filter protects the pump against dirt particles in the water.
Safety valves, water shortage and fuel protection ensure the availability of the machine.
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.

Multiple storage spaces for accessories integrated into the machine

On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.
Spacious storage compartment, e.g. for detergents, gloves or tools.

Detergent dosing unit

Easy to switch between detergent tank 1 and 2.
Precise detergent dosing unit with rinse function.

Mobility concept

"Jogger" design with large rubber wheels and steering roller.
Integrated tipping trough for effortless transport over ledges.
Push handles for simple transport and manoeuvrability.

Easy to use controls

One switch for all unit functions.

Specifications

Technical data

Power supply (Ph/V/Hz)	3 / 400 / 50
Flow rate (l/h)	500 - 1000
Working pressure (bar/MPa)	30 - 210 / 3 - 21
Temperature (for supply 12 °C) (°C)	min. 80 - max. 155
Connected load (kW)	8
Consumption of fuel oil at full load (kg/h)	7,3
Consumption of heating oil in eco!efficiency mode (kg/h)	5,8
Power cable (m)	5
Fuel tank (l)	25
Weight (with accessories) (kg)	160,2
Weight incl. packaging (kg)	170,1
Dimensions (L × W × H) (mm)	1330 x 750 x 1060

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 10 m
High-pressure hose type: Longlife
High-pressure hose specification: DN 8, 400 bar
Spray lance: 1050 mm
Power nozzle
Servo Control

Equipment

Detergent function: 20 + 10 l tank
ANTI!Twist
Tanks for detergent, calcification protection and fuel that can be filled from the outside
Control bar with display light
Pressure cut-off
Pole reverse plug (3~)
2 Detergent tanks
Dry-running protection
