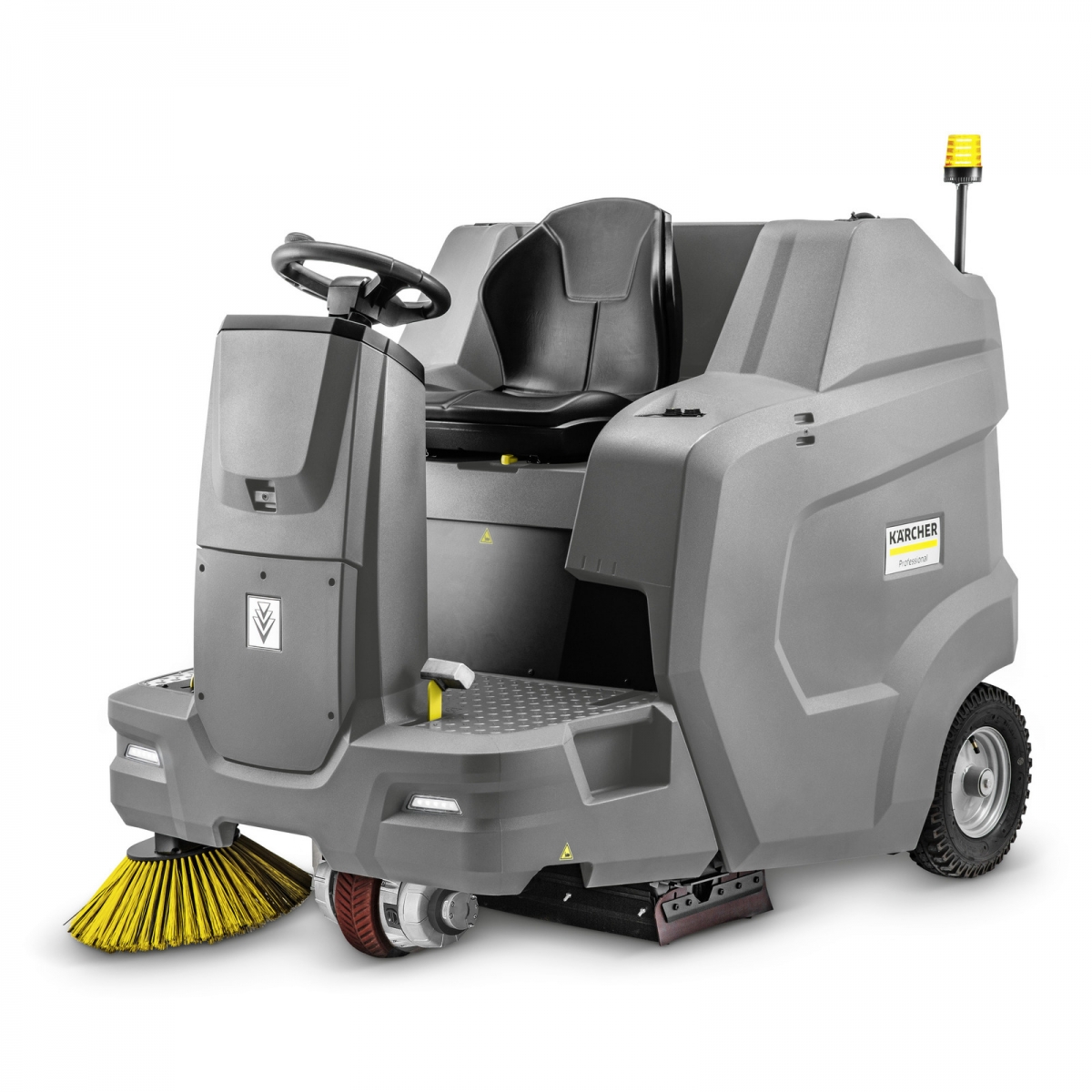

KM 100/120 R Bp

Brand

Equipped with a floating roller brush for excellent sweeping results, our battery-powered, zero-emissions KM 100/120 R Bp ride-on vacuum sweeper is the perfect choice for extended cleaning applications, especially in very dusty interior areas. A swivelling side brush prevents damage to the machine and furnishings, and the speed of the side brush can be adapted to the quantity of dust. The tried-and-tested round filter system with six square metres of filter area and automatic cleaning enables dust-free sweeping at all times, even when there is a lot of dust, and the hydraulic high container emptying allows for convenient disposal of the waste collected in the large waste container. All control elements are easy to reach and also very clearly arranged, with the adjustable driver's seat allowing a very good overview. All parts requiring maintenance are easy to access, and the filter and roller brush can also be changed with no tools required. The KM 100/120 R can also be equipped with an optional protective roof or a vacuum holder to suit individual needs. The battery and battery charger are not included in the scope of supply and must be ordered separately.





Description

Specifications

Technical data

Traction drive DC motor
Drive – Power (V) 24
Drive type Electric
Max. area performance (m²/h) 6000
Max. area performance with 2 side brushes (m²/h) 7620
Working width (mm) 730
Working width with 1 side brush (mm) 1000
Working width with 2 side brushes (mm) 1270
Battery voltage (V) 24
Waste container (l) 120
Climbing ability (%) 12
Working speed (km/h) 6
Filter area (m²) 6
Weight (with accessories) (kg) 498
Weight incl. packaging (kg) 500,1
Dimensions (L × W × H) (mm) 1700 x 1195 x 1370

Scope of supply

  • Polyester round filter
  • Wheels, pneumatic

Equipment

  • Manual filter cleaning
  • Automatic filter cleaning
  • Main sweeper roller, floating
  • Power steering
  • Suction volume regulation
  • Coarse dirt flap
  • Overhead sweeping principle
  • Traction drive, forwards
  • Traction drive, reverse
  • Suction
  • Hydr. high dump
  • Outdoor use
  • Indoor use
  • Elapsed time counter
  • Sweeping function, can be switched off
  • Side brush, automatically swings out
  • Home Base fastening possibilit
