HDS 8/18-4 C

Brand

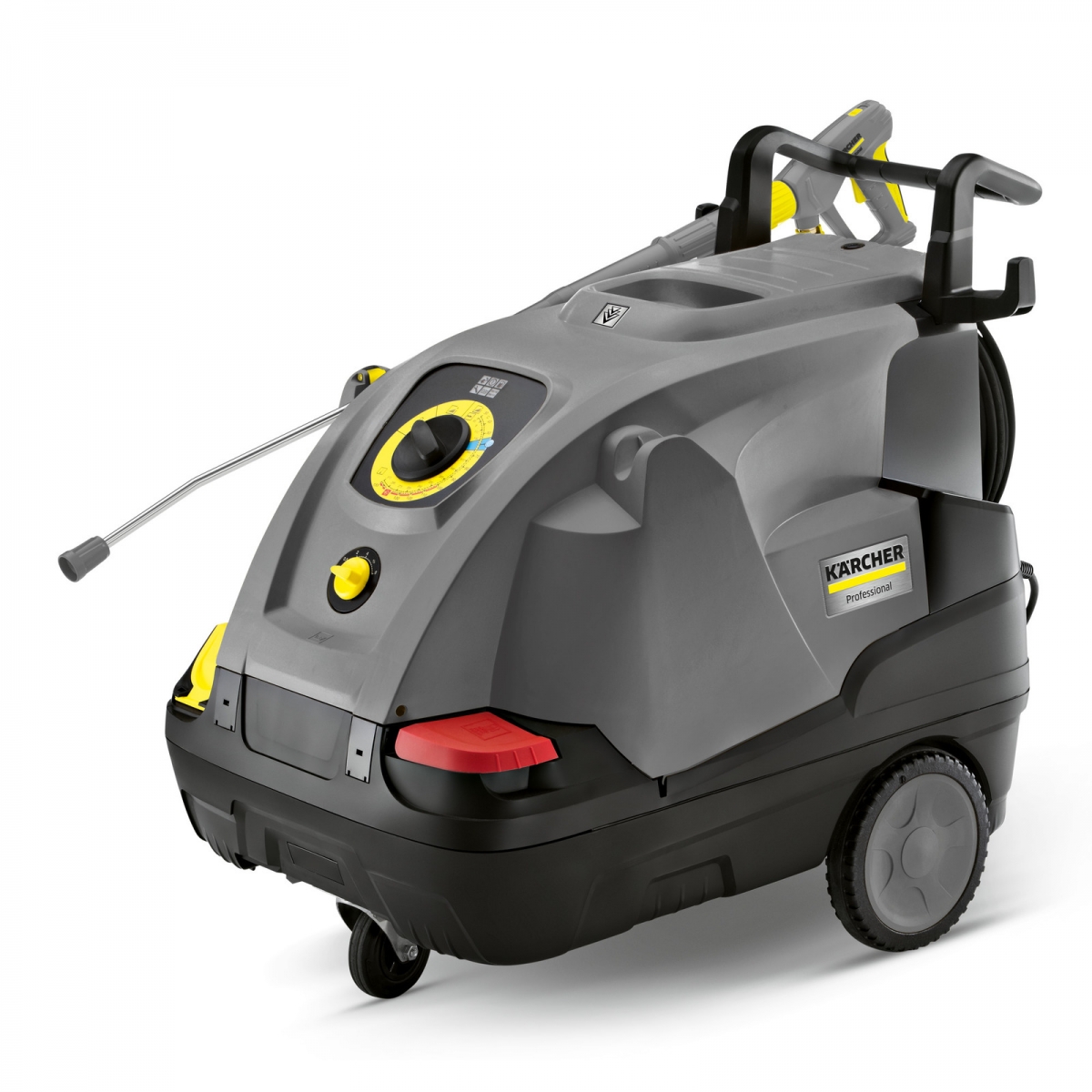

The HDS 8/18-4 C is the most powerful hot water high-pressure cleaner in our HDS Compact class. The three-phase machine with 4-pole, water-cooled electric motor offers everything you could expect when it comes to ease of use, ergonomics and efficient use of resources. Users will be impressed by features like the simple single-button operation and the high level of mobility provided by the large wheels and steering roller. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The hard-wearing chassis ensures optimum safety, as the tanks for cleaning agents and fuel are securely integrated. Handy storage compartments for accessories and tools completethe wide range of features offered by the HDS 8/18-4 C.





Description

Reliability

  • The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
  • Large water filter protects pump against damage.
  • Water softening system to protect the heating coil against calcification damage.

Portability

  • "Jogger" design with large wheels and steering roller.
  • Large integrated handles in the chassis.
  • Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

  • Fatigue-free work at last: the EASY!Force high pressure gun.
  • EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.

Specifications

Technical data

Power supply (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 300 - 800
Working pressure (bar/MPa) 30 - 180 / 3 - 18
Temperature (for supply 12 °C) (°C) min. 80 - max. 155
Connected load (kW) 6
Consumption of fuel oil at full load (kg/h) 5
Consumption of heating oil in eco!efficiency mode (kg/h) 4
Power cable (m) 5
Fuel tank (l) 15
Weight (with accessories) (kg) 119,4
Weight incl. packaging (kg) 128,1
Dimensions (L × W × H) (mm) 1060 x 650 x 920

Scope of supply

  • Spray gun: EASY!Force Advanced
  • Spray lance: 1050 mm
  • Power nozzle
  • Servo Control

Equipment

  • High-pressure hose length: 10 m
  • High-pressure hose specification: DN 6, 250 bar
  • Soft Damping System (SDS)
  • Pressure cut-off
  • Integrated fuel and detergent tank
